Pump Selection
The Pinnacle-Flo pump selection program allows you to select and evaluate the best pump to suit your specific requirements.
How it works
The first step in pump selection is to describe the pump’s requirements. This includes information on the pump design point (head and flow), along with synchronous speeds. After the pump requirements are entered, the program searches and displays a list showing all pumps meeting your requirements. The selection list can then be sorted by pump size, NPSHr, efficiency and power consumption to simplify your comparison.
A pump curve can be generated showing pump head, efficiency, horsepower and NPSHr as a function of flow rate. An information box displays additional information about the selection — impeller diameter, speed, shutoff head, maximum horsepower, BEP, minimum flow, motor data and much more.
Fluid data
Your selection can be further defined by selecting from a list of more than 120 chemicals to be pumped. Specific gravity, viscosity and temperature can also be specified, allowing you to get the most precise pump information available.
Simply click on the pump selection prompt, log in and select all of your pump needs. All selections can be saved, printed or e-mailed. Log on as often as you like.
Take Me to Online Pump Selection →
Prefer to have us run it? Send your duty point and fluid data and an application engineer will return a selection, curve, and lead time.
Service & Support
Pinnacle-Flo recognizes the need for timely and reliable service. We have a number of resources available to assist Pinnacle-Flo customers. We have invested heavily in inventory and developed systems to routinely handle our customers’ most critical needs. Our customer service personnel and application engineers are capable of providing solutions to the most difficult pumping problems.
Inventory & Delivery
Pinnacle-Flo maintains substantial stock on our most common materials including carbon steel, stainless steel, CD4 and Alloy 20 to meet the delivery demands for process pumps. Factory inventory, coupled with a nationwide system of stocking distributors, assures our customers that their emergency needs will be handled with the utmost urgency.
What We Provide
- Custom pump engineering and manufacturing
- Pump operation and maintenance manuals, including parts lists
- Specification data sheets
- Performance curves
- Outline drawings in PDF and CAD format
- Pump training and mechanical seal selection
Our pump manuals are specific to serial number ranges, and parts for your pump may be specific to your particular serial number. The specification sheets, drawings and curves provided on this site are all for the latest issue of each model and may not necessarily reflect the details of your pump — this information is provided for reference only. Please contact us with your model and serial number information for assistance with pump application or parts support.
Engineering Design & Skid Packages

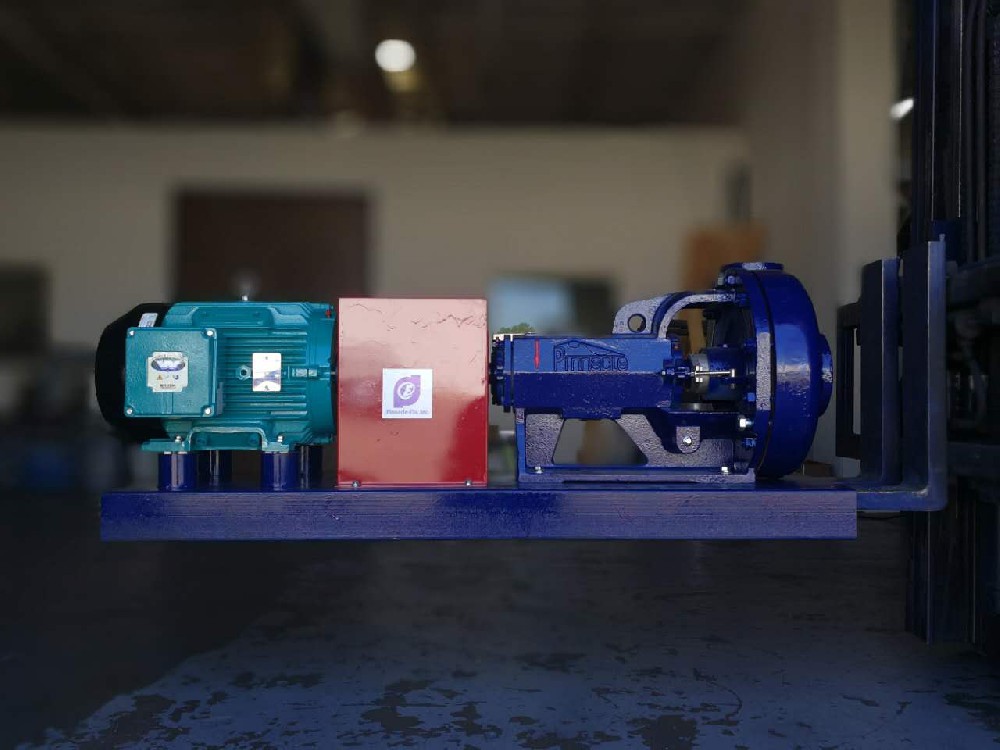

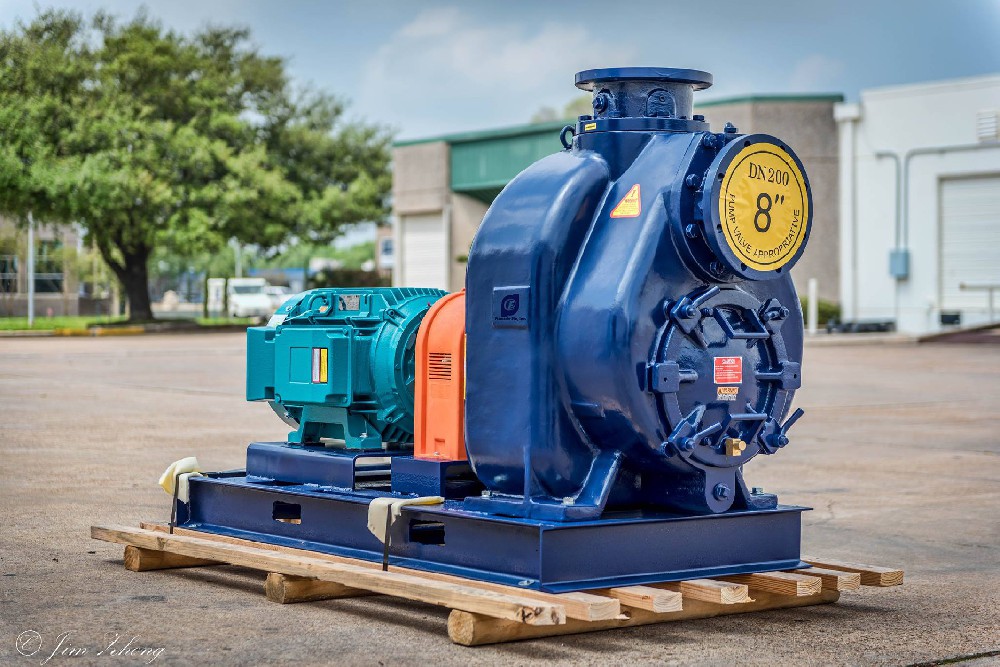

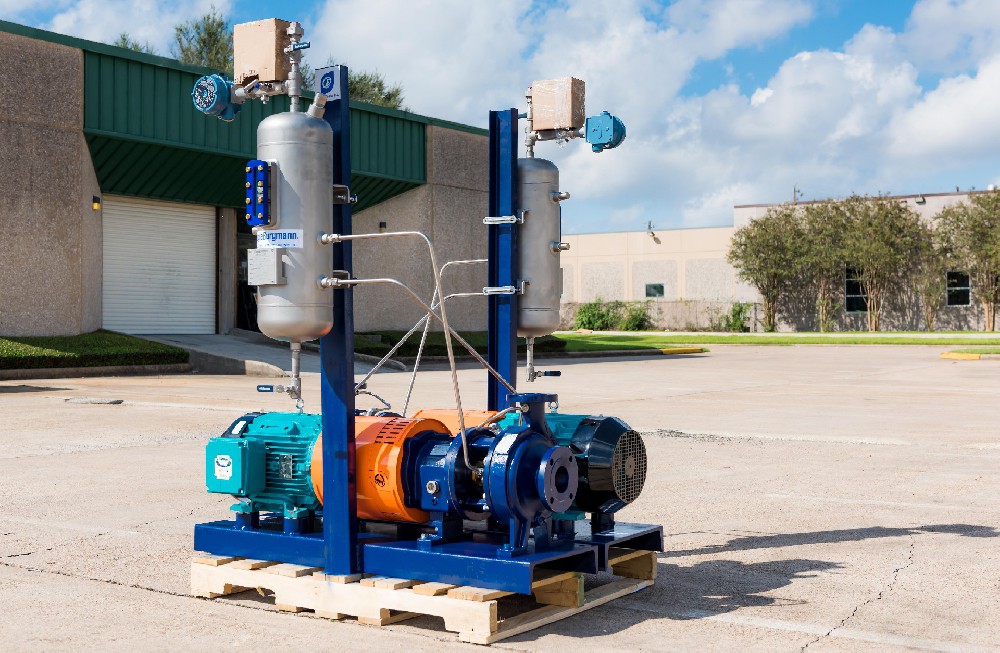

Beyond bare pumps, Pinnacle-Flo builds complete pump skid packages incorporating mechanical seal support systems and control panels, engineered for turnkey installation.
